|Magnetic Drive Seal Less

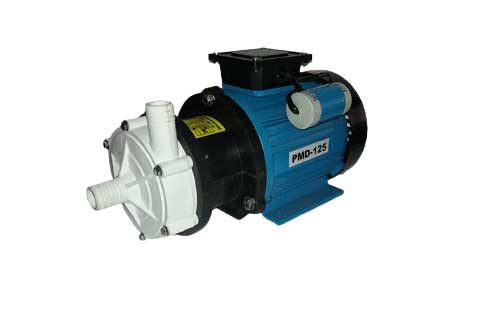

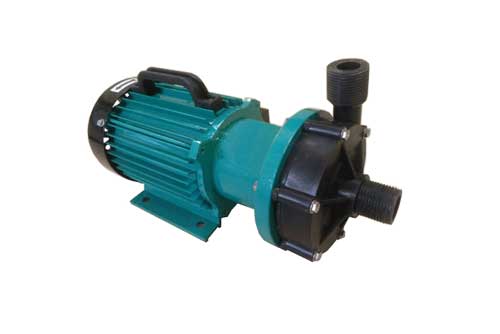

Polypropylne Pumps: All PMD - Series Seal Less Magnet
Driven Centrifugal Pumps utilize an innovative dual magnet
concept to drive the impeller. The radial gap coupling is
composed of outer and inner permanent ceramic magnets, with
the outer drive magnet affixed to the motor shaft and the
inner driven magnet affixed to the pump impeller. The torque
created by the two concentrate magnets is transmitted through
a static seal comprising a non-magnetic corrosion resistant
magnet housing. Casing, Casing Cover and Impeller are made
from Glass field Polypropylene or PVDF.
Magnetic Drive Pumps Applications: Ideal for
transfer highly corrosive chemicals, acids, dyes, solvents,
toxic & fuming liquids, DM water, Mineral Water etc. in
Chemical, Pharmaceuticals, Textiles, Food, Electroplating
Industries. Also used in Laboratory & Medial Equipments,
X-Ray Film Plants, Photo Processing, PCB manufacturers, Liquid
dispensing machine and fountains etc.
Magnetic Drive Pumps are avaliable in wide range up to 300
LPM Capacity, Up to 20 Meters Head, Temperature Range Maximum
80* C for PP MOC & Maximim120* C for PVDF MOC and with
Single Phase / Three Phase Electricl Motors.
